The Tank Mount Valve Range.
The big ball Valves are designed primarly for car fuel tanks in motor sport applications, where they will be subjected to violent movement.
The two- ball valves are open to the atmosphere so vapour can collect inside the vehicle. All installations should be piped to the outside of the vehicle or connected to a charcoal canister. Please see the specification pdf for each product to see the correct installation advice.
The Small Tank Valves - are designed for Motorsport use on motorcycle fuel tanks, where they will be subjected to violent movement.
The two ball valves should be piped to the outside of the vehicle or connected to a charcoal canister, in order to vent the vapour that collects inside the fuel tank.
They need to be mounted vertically to operate correctly.
Pictures are for illustration purposes only and some products may have different etchings.

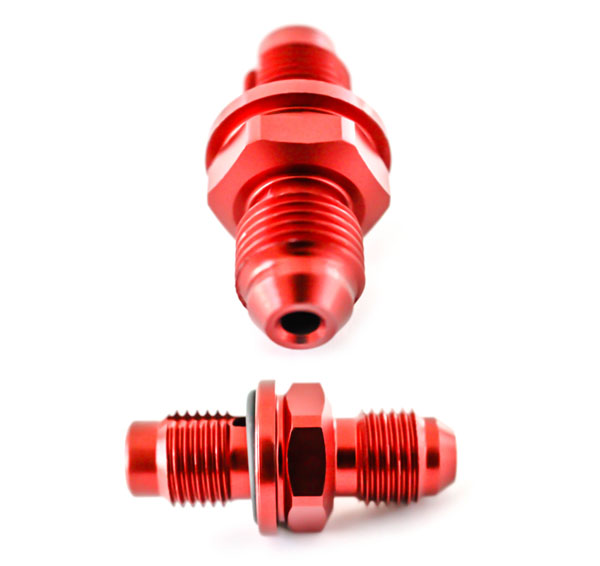

Tank Mount Roll Over Valve, 9/16”UNF to -06JIC End Fittings.
Anodised Red - CF-AA-011 ( TRV66 )Industry Useage - For use in Motorsport, Automotive, Marine and General.
Optional - Nut - FF-AD-013 ( N916 )
Tank Mount Roll Over Valve, 9/16”UNF x Ø7.0mm End Fittings.
Anodised Red - CF-AA-007 ( TRV67 )Industry Useage - For use in Motorsport, Automotive, Marine and General.
Optional - Nut - FF-AD-013 ( N916 )

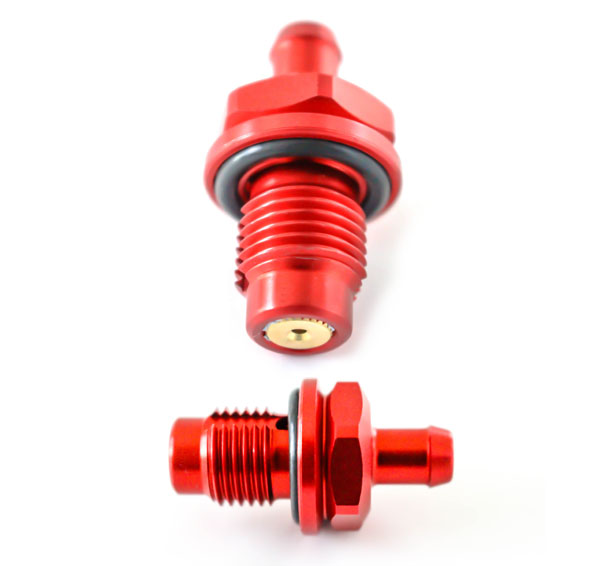

Tank Mount Roll Over Valve, 9/16”UNF x Ø8.0mm End Fittings.
Anodised Red - CF-AA-010 ( TRV68 )Industry Useage - For use in Motorsport, Automotive, Marine and General.
Optional - Nut - FF-AD-013 ( N916 )

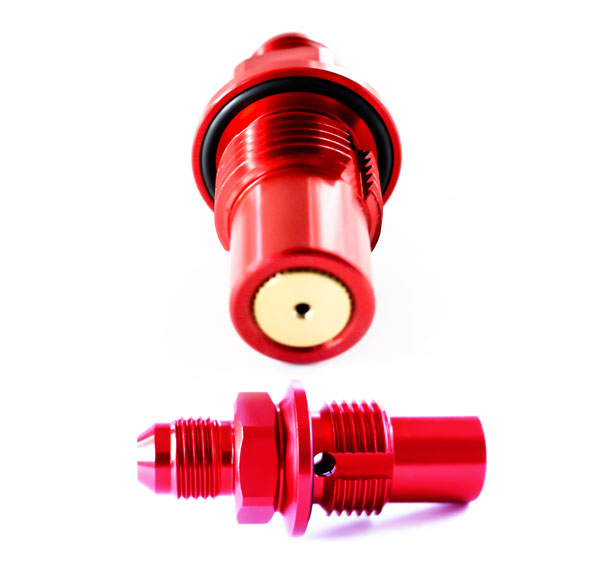

Tank Mount Rollover Valve, ¾” UNF x - 06JIC End Fittings.
Anodised Red - CF-AA-012 ( TRV86 ) Industry Useage - For use in Motorsport, Automotive, Marine and General.Optional - Nut - FF-AD-018 ( N916 )
Tank Mount Rollover Valve, 7/16” UNF x Ø5.0mm End Fittings.
Anodised Red - CF-AA-005 ( TRV45 )Industry Useage - For use in Motorsport, Automotive, Marine and General.
Nut Included

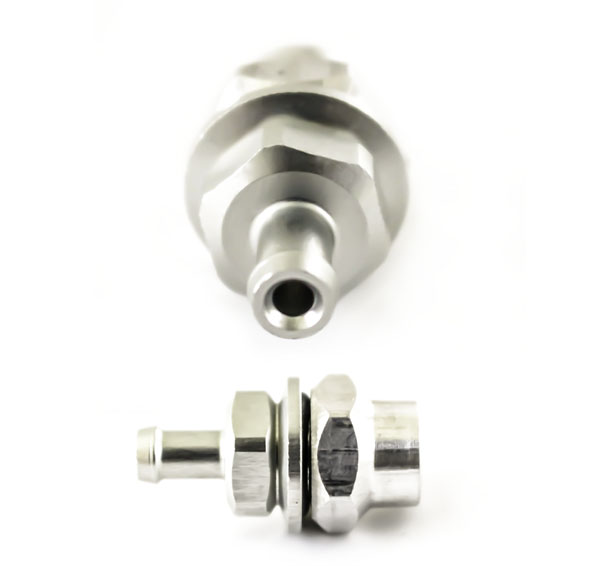

Tank Mount Atmospheric Valve (No Internal Balls), 7/16” UNF x Ø5.0mm End Fittings.
Silver - CF-AA-027 ( TVO45 )Industry Useage - For use in Motorsport, Automotive, Marine and General.
Nut Included

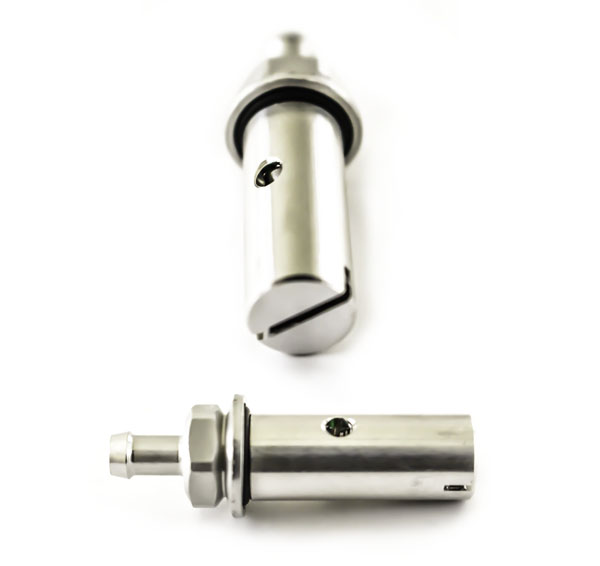

Tank Mount Roll Over Valve, 7/16” x Ø5.0mm End Fittings.
Silver - CF-AA-014 ( TBV45 )Industry Useage - For use in Motorsport, Automotive, Marine and General.

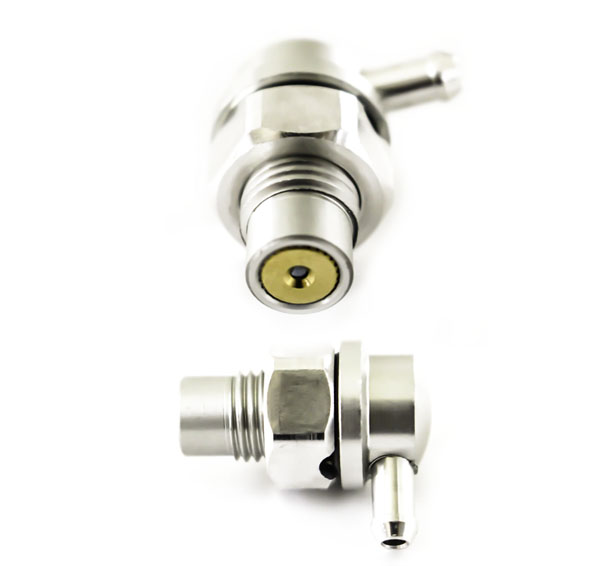

Tank Mount Rollover Valve, 7/16”UNF x Ø5.0mm (Horizontal) End Fittings.
Silver - CF-AA-029 ( THV45 )Industry Useage - For use in Motorsport, Automotive, Marine and General.

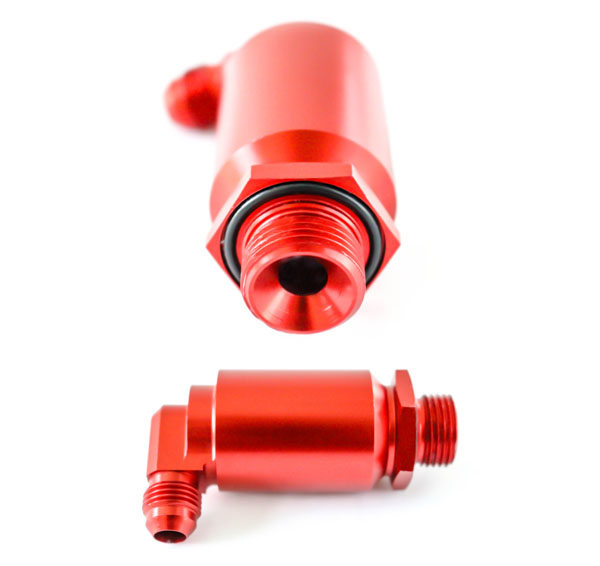

TANK MOUNT FIA 200MBAR VALVE M16(STD) x -06JIC (HORIZONTAL) END FITTINGS
Anodised Red - CF-AA-024 ( VRM16-8PP )Industry Useage - For use in Motorsport.

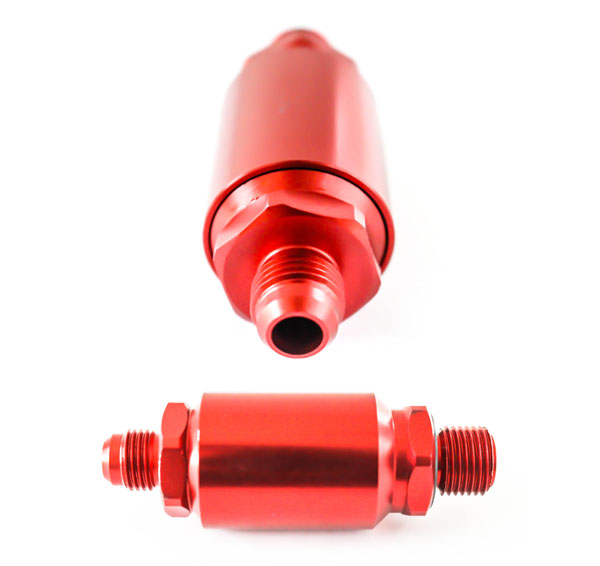

Tank Mount FIA 200MBAR Vent Valve, M16(STD) x -06JIC End Fittings.
Anodised Red - CF-AA-025 ( VRM16-6 )Industry Useage - For use in Motorsport.
