The In-Line Valve Range.
Our TRL Valves are suitable for Motorsport and can be used on cars up to and above F1, where they will be subjected to violent movement.
These valves are designed to be installed in-line, stored in a vertical position.
The TPV In-Line valves are suitable for use in more general applications , such as everyday automotive use and fuel injection engines.
They are designed so no standing gas is lost when the vehicle is at rest. They open when fuel is drawn from the tank and shut once activity ceases. Any pressure build-up will open the valve and will close once the pressure is released.
These valves can be mounted at any angle.
Pictures are for illustration purposes only and some products may have different etchings.
In-Line Rollover Vent Valve, -06JIC to -06JIC End Fittings
Anodised Red - CF-AA-021 ( TRL6 )Industry Usage - For use in Motorsport, Automotive, Marine and General.
In-Line Rollover Vent Valve, Ø7.0mm to Ø7.0mm End Fittings.
Anodised Red - CF-AA-017 ( TRL7 )Industry Usage - For use in Motorsport, Automotive, Marine and General.

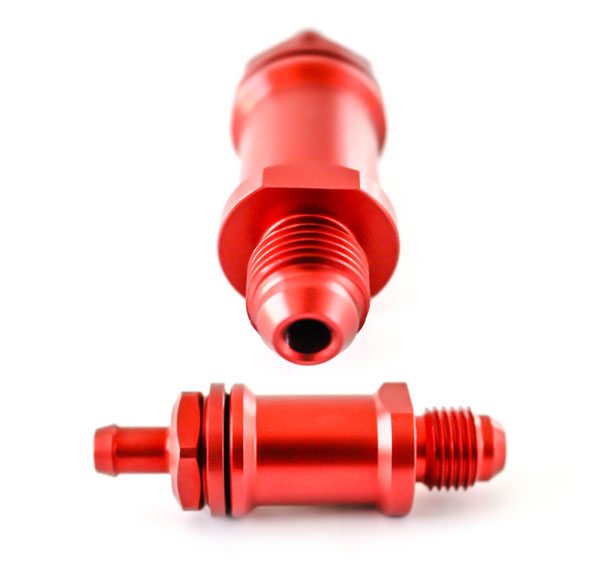

In-Line Rollover Vent Valve, -06JIC to Ø7.0mm End Fittings.
Anodised Red - CF-AA-019 ( trl8 )Industry Usage - For use in Motorsport, Automotive, Marine and General.

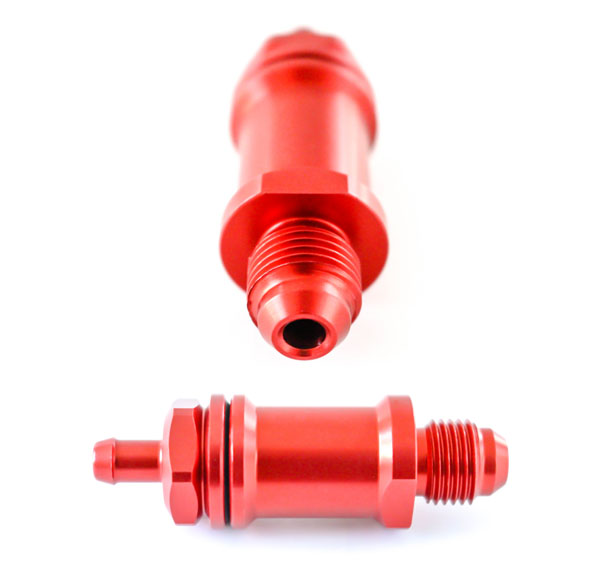

In-Line Rollover Vent Valve, -06JIC to Ø8.0mm End Fittings.
Anodised Red - CF-AA-020 ( TRL68 )Industry Usage - For use in Motorsport, Automotive, Marine and General.

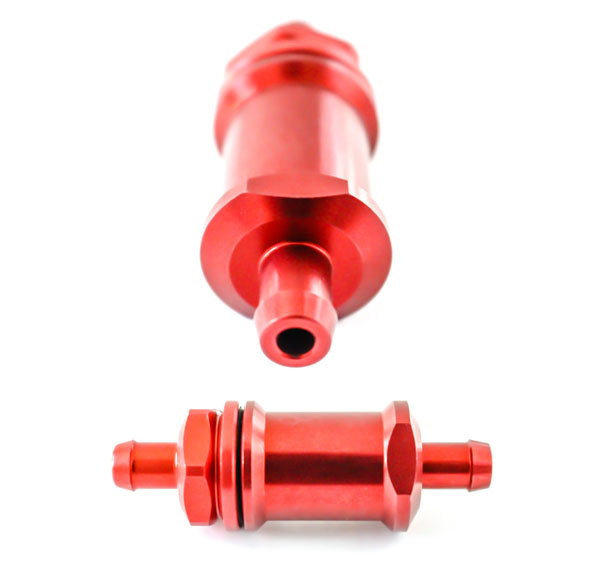

In-Line Rollover Vent Valve, Ø8.0mm to Ø8.0mm End Fittings.

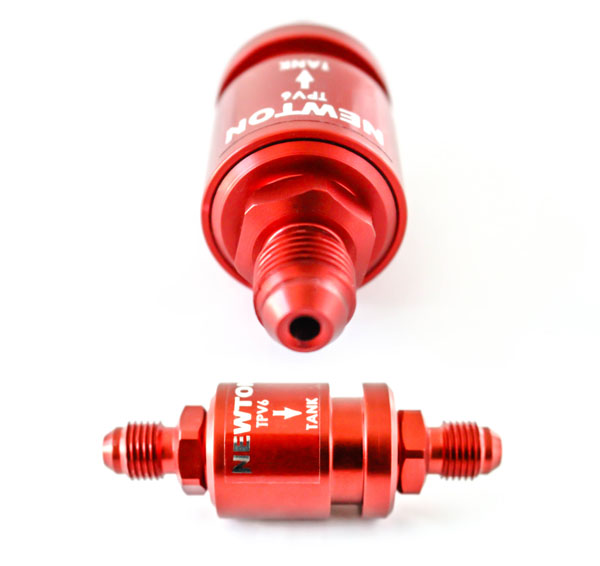

Anodised Red - CF-AA-018 ( TRL88 ) Industry Usage - For use in Motorsport, Automotive, Marine and General.In-Line Pressure Release Valve (Pos. Pressure 50MBar/ Neg. Pressure 5.5MBar), -06JIC to -06JIC End Fittings.
Anodised Red - CF-AA-016 ( TPV6 )Industry Usage - For use in Motorsport, Automotive, Marine and General.

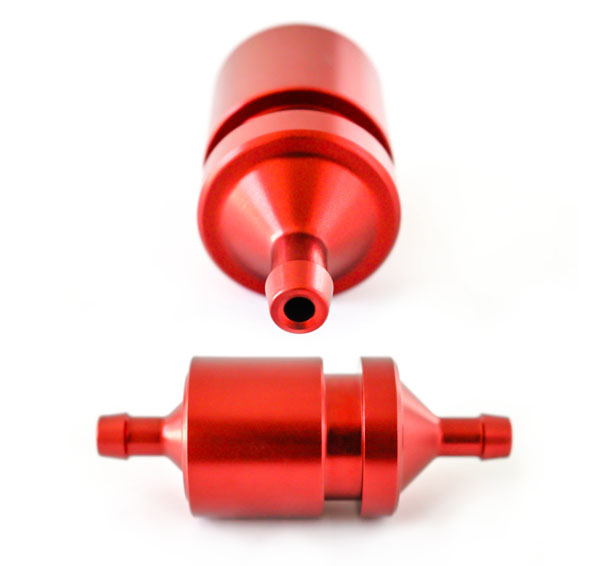

In-Line Pressure Release Valve (Pos. Pressure 50MBar/ Neg. Pressure 5.5MBar), Ø8.0mm to Ø8.0mm End Fittings.
Anodised Red - CF-AA-015 ( TPV8 )Industry Usage - For use in Motorsport, Automotive, Marine and General.

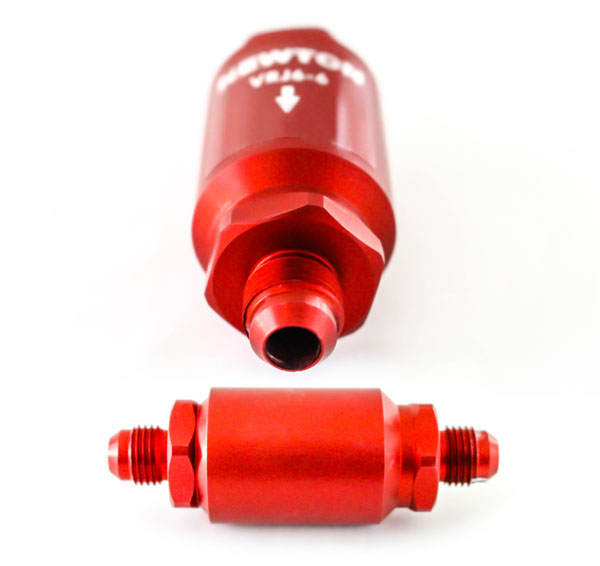

In-Line FIA 200Mbar Valve, -06JIC to -06JIC End Fitting.
Anodised Red - CF-AA-022 ( VRJ6-6 )Industry Usage - For use in Motorsport.
