Parts and Accessories

Our range of parts and accessories includes many optional extras or replacement parts including spare keys, connecting hoses, gaskets, fixing rings and retention tabs. Please contact us directly for any parts not listed.

Parts and Accessories

Connecting Hoses

Description - Rubber Fuel Tank Hoses

View details

Gaskets

Description - Cork, Nitrile and Rubber Gaskets

View details

Fixing Rings

Description - Fixing Rings for Aero Range

View details

Retention Tabs

Description - Cable and tab to secure caps.

View details

Spare Keys

Description - Replacement keys

View details

Screw Packs

Description - Screw packs for Aero Range.

View details

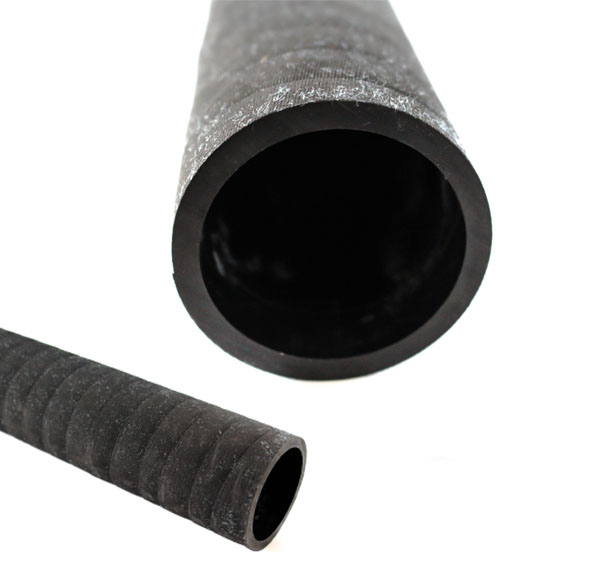

Connecting Hoses.

Our Connecting Hoses are available in different sizes, length and diameter and are made from the following materials.
Nitrile / Neoprene Wire Reinforced
This type of filler hose is black, lightweight, flexible and smooth and is made from a liner of nitrile sheet rubber, with a high tensile spring steel helix covered with nitrile coated nylon fabric, and having an outer cord of neoprene-coated polyester.

Nitrile / PVC Extruded
This type of filler hose is black and is made from fuel resistant rubber. Owing to the method of construction the wrapped hoses do not bend easily. Straights and elbows should be used as required.

In addition we also sell a Clear Urethane Wire Reinforced hose and a Nitrile BA70
hose.

All straight hoses are sold per 1 meter with a maximum length of 4 metres.

Connecting Hose - Nitrile / Neoprene Wire Reinforced.

I/D 38.0mm - HS-AB-001 ( CH39180 )
I/D 45.0mm - HS-AB-002 ( CH45180 )
I/D 51.0mm - HS-AB-004 ( CH51180 )
I/D 57.0mm - HS-AB-008 ( CH58180 )
I/D 63.0mm - HS-AB-014 ( CH64180 )

NITRILE / PVC EXTRUDED.

I/D 45 mm - HS-AB-003 ( CHE45180 )
I/D 51 mm - HS-AB-005 ( CHE50180 )
I/D 57 mm - HS-AB-009 ( CHE57180 )

Clear Urethane Wire Reinforced.

I/D 60 mm - HS-AB-012 ( CHPU60180 )

NITRILE BA70.

I/D 88.0 mm x 500L x 6.35THK - HS-AB-017 ( CHE88180 )

Description - Engine and automotive industry. Only suitable for connecting the fuel filler to the fuel tank. Special properties: High resistance to constant vibration, heat and cold; particularly suitable for oils and fuels;.

Shop Now

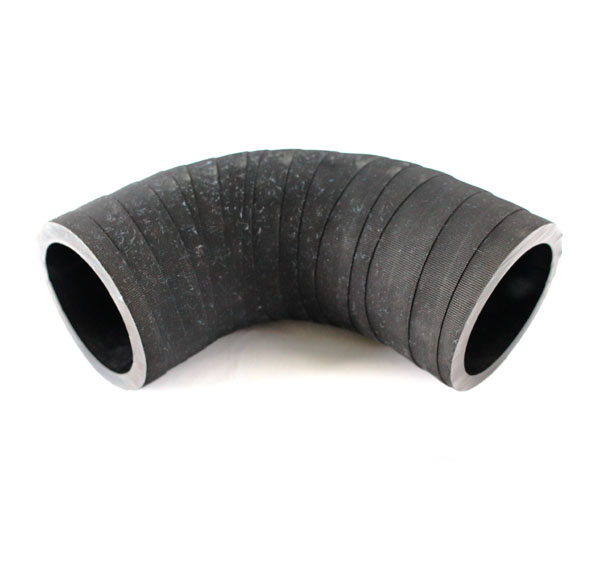

Connecting Hose, NITRILE / PVC EXTRUDED - Elbows.

I/D 51 mm, 45° - HS-AB-006 ( CHE5045 )
I/D 51 mm, 90° - HS-AB-007 ( CHE5090 )
I/D 57 mm, 45° - HS-AB-010 ( CHE5745 )
I/D 57 mm, 90° - HS-AB-011 ( CHE5790 )

Description - Engine and automotive industry. Only suitable for connecting the fuel filler to the fuel tank. Special properties: High resistance to constant vibration, heat and cold; particularly suitable for oils and fuels;.

Shop Now

Gaskets.

Aero tank filler caps are supplied as standard with a nitrile bonded cork gasket to BS 2020. This gasket has a nominal thickness of 1.00 mm. We can offer gaskets in other materials at extra cost:
Nitrile Gaskets to BS 2751.
This gasket is made from Nitrile Bonded Cork

Moulded Nitrile Gasket (Aero 400 only)
This gasket is made from moulded Nitrile.

Nitrile Rubber Gasket (Aero 300 and 400 only)
This gasket is made from Nitrile Rubber.

Gaskets for Aero 200 Range

6 Hole, 1.5 mm, Neoprene / Nitrile Bonded Cork - GA-AB-021 ( GC26 )
6 Hole, 1 mm, Nitrile Rubber - GA-AB-024 ( GR26 )

Gaskets for Aero 300 Range

6 Hole, 1.5 mm, Neoprene / Nitrile Bonded Cork - GA-AD-001 ( GC36 )
6 Hole, 1.5 mm, Nitrile Rubber - GA-AD-004 ( GR26 )

Gaskets for Aero 400 Range

8 Hole, 1.5 mm, Neoprene / Nitrile Bonded Cork - GA-AE-001 ( GC48 )
8 Hole, 1.25 mm, Nitrile Rubber - GA-AE-004 ( GR48 )
8 Hole, 1.6-2 mm, Nitrile Rubber - GA-AE-009 ( GR48T )
9 Hole, 1.5 mm, Neoprene / Nitrile Bonded Cork - GA-AE-005 ( GC49 )
9 Hole, 1 mm, Nitrile Rubber - GA-AE-008 ( GR49 )

Gaskets for Aero 500 Range

8 Hole, 1.5 mm, Neoprene / Nitrile Bonded Cork - GA-AH-001 ( GC58 )
12 Hole, 1.5 mm, Neoprene / Nitrile Bonded Cork - GA-AI-001 ( GC512 )
12 Hole, 1.8 mm, Nitrile Rubber - GA-AI-004 ( GR512 )

Description - Gaskets for the Aero Range.

Shop Now



Gaskets for Classic 250 Range

1.5 mm, Black Viton - GA-ZA-001 ( GR250 )
0.4 mm, Hard Fibre - FF-AC-012 ( GF250 )

Gaskets for Classic 275 Range

1.5 mm, Black Viton - GA-ZA-002 ( GR275 )
0.4 mm, Hard Fibre - FF-AC-014 ( GF275 )

Gaskets for Classic 350 Range

1.5 mm, Neoprene / Nitrile Bonded Cork - GA-AG-001 ( GC350 )

Description - Gaskets for the Classic Range

Shop Now

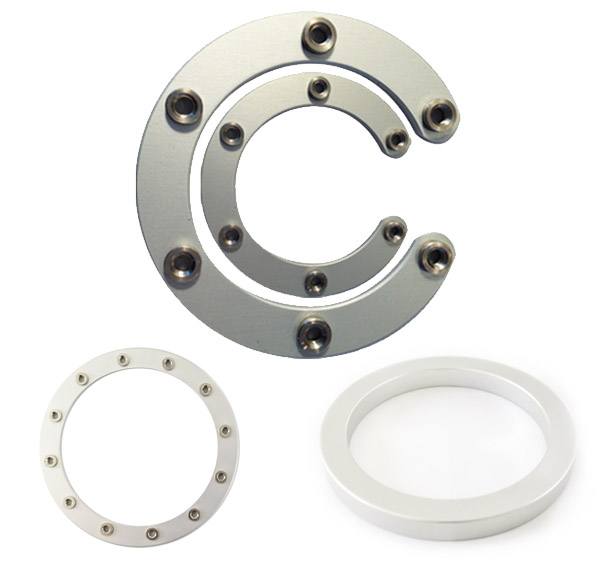

Fixing Rings.

For use with the Aero Range as an optional extra when access to the rear of a panel is restricted or the top surface of a tank is in poor condition.
The 'C' Type
The 'C' type with a stainless steel thread. The 'C' design allows the fixing ring to be passed through the filler cap hole in the tank or panel.

The 'Solid' Type
The solid design has blind threads and is intended to weld flush to a tank surface giving a perfect fitting platform. It can also be placed inside the tank so as to sandwich the tank material between the flange and the fixing ring.


Fixing Rings - 'C' Shape

Aero 200, 6 Holes, M4 - FR-AB-021 ( FR26 )
Aero 300, 6 Holes, M5 - FR-AD-001 ( FR36 )
Aero 400, 8 Holes, M5 - FR-AE-001 ( FR48 )
Aero 400, 9 Holes, M5 - FR-AE-003 ( FR49 )
Aero 400, 12 Holes, M6 - FR-AI-011 ( FR412 )
Aero 500, 8 Holes, M5 - FR-AH-001 ( FR58 )
Aero 500, 12 Holes, M5 FR-AI-003 ( FR512 )
Aero 600, 8 Holes, M5 - FR-AF-001 ( FR68 )

'SOLID' SHAPE

Aero 200, 6 Holes, M4 - FR-AB-022 ( FR26S)
Aero 300, 6 Holes, M5 - FR-AD-002 ( FR36S )
Aero 400, 8 Holes, M5 - FR-AE-002 ( FR48S )
Aero 400, 9 Holes, M5 – FR-AE-006 ( FR49S )
Aero 400, 12 Holes, M6 – FR-AI-012 ( FR412S )
Aero 500, 8 Holes, M5 – FR AH-002 ( FR58S )
Aero 500, 12 Holes, M5 – FR-AI-002 ( FR512S )
Aero 600, 8 Holes, M5 – FR-AF-002 ( FR68S )

Shop Now

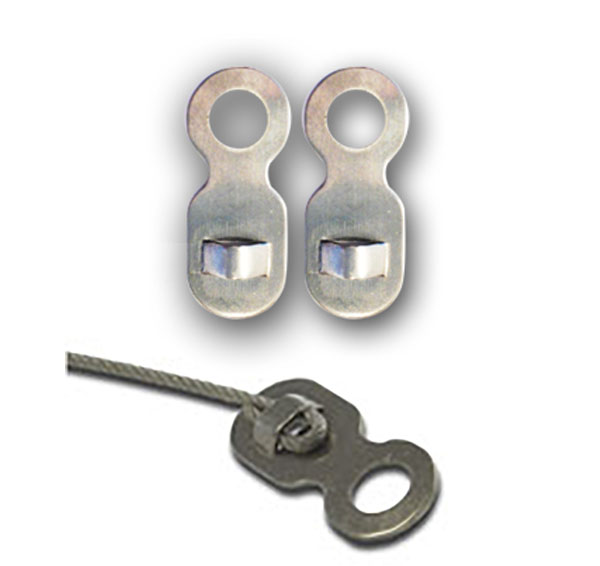

Retention Tabs and Cable.

Specially designed and developed by Newton Equipment to meet the need for secure attachment of 2 parts using 1.5mm stainless steel cable. The tabs can be bent to suit any application. Alternatively, a ferrule can be fitted in the same fashion as a retention tab.

Cable lengths can be supplied by the meter. The cable is made from 1.5mm stainless steel and has a plastic coating.

Ø1.60 RETENTION PIN Ø2.50 SPIGOT x 9.20H

AA-AD-003 ( RP15 )

LANYARD CABLE S/S THREAD NYLON PLASTIC COATED 1.60C/S

AA-AD-001 ( RC16 )

FERRULE COPPER CLINCH TO FIT LANYARD THK1.60MM

AA-AD-002 ( RF15 )

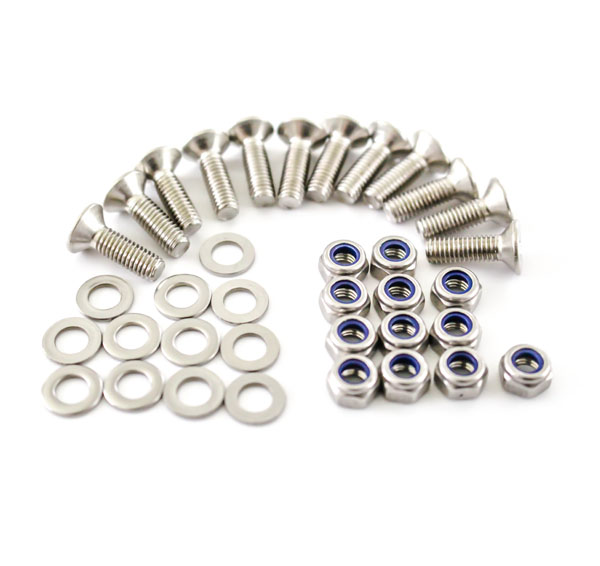

Screw Packs.

Screw packs are available for the Aero Range and come in packs of 6, 8, 9 or 12:

Screw Packs

Aero 200, 6 Hole Screw pack - AA-AB-001 ( SP26 )
Aero 300, 6 Hole Screw pack - AA-AB-002 ( SP36 )
Aero 400, 8 Hole Screw pack - AA-AB-003 ( SP48 )
Aero 400, 9 Hole Screw pack - AA-AB-004 ( SP49 )
Aero 400, 9 Hole, Button Head Screws - AA-AB-006 ( SP49BUT )
Aero 400, 12 Hole, Button Head Screws - AA-AB-007 ( SP412BUT )
Aero 500, 12 Hole Screw pack - AA-AB-005 ( SP512 )

Shop Now

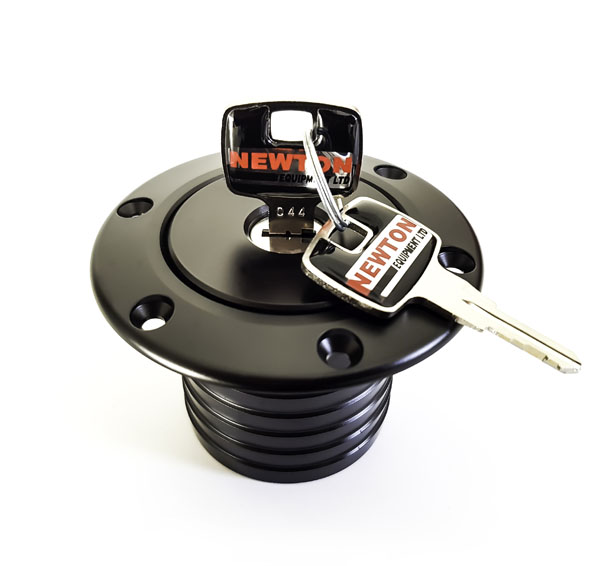

Spare Keys.

We can provide spare keys for the Aero, Zero and Classic Ranges.

To determine which key is paired with which lock we will need the key number from your lock.
Keys for caps purchased before 2004 can only be purchased by contacting us.

Aero Range

2 x Spare Keys (keys 603 - 699) - AA-AC-005 ( KS3456 )
New Lock Assembly + 2 Keys - AA-AC-001 ( LS3456 )

Zero Range

2 x Spare Keys - AA-AC-008 (keys 044)
New Lock Assembly + 2 Keys - AA-AC-015 ( KSCAT8 )




Shop Now
